UTS04 – NEW U-SNOW PLOW WITH POLYURETHANE BLADE HOLDERS

UTS04 – NEW U-SNOW PLOW WITH POLYURETHANE BLADE HOLDERS

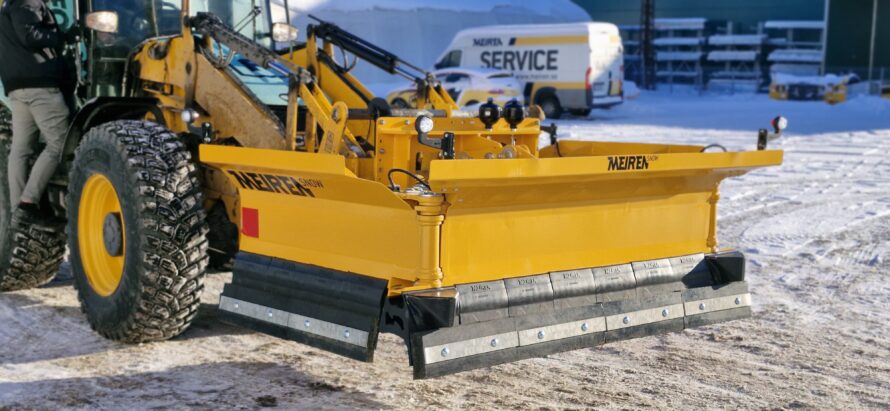

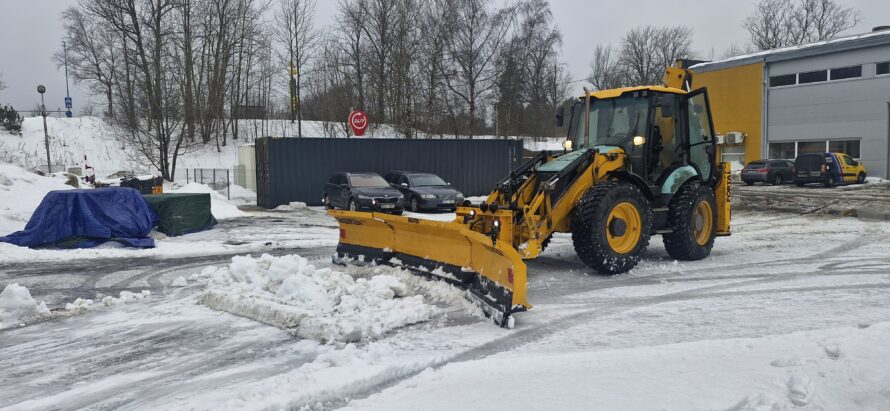

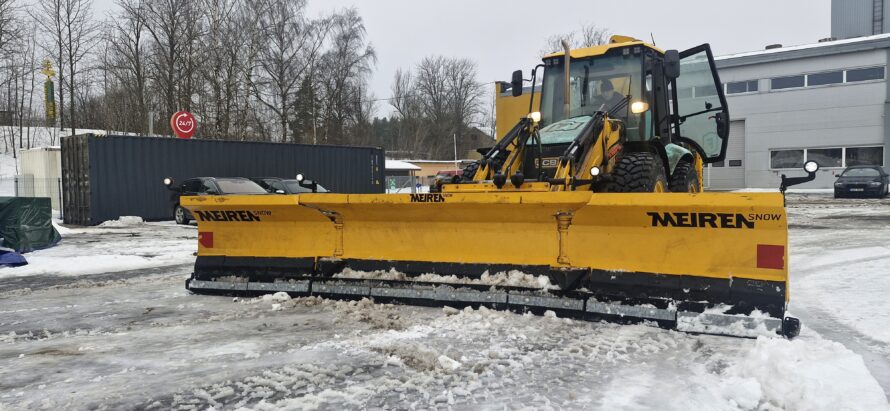

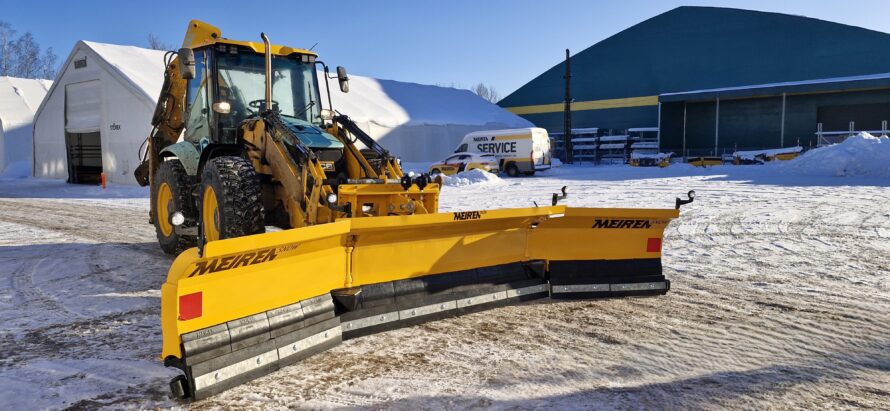

The NEW UTS04 snow plow with polyurethane blade holders is ideal for use on large open areas, parking lots, production yards, wide roads. UTS04 is combination of highest cleaning quality Meiren patented polyurethane blade holders with robust and solid structure of U-snow plow for tractors and wheel loaders. Specially designed, up to 180 degrees turning sidewings and 36 degrees turning centre wing allows users to freely manuever with the plow and clean areas and roads with high precision. The patented noise-reducing, road coping and obstacles overriding polyurethane blade holders, with aggressive cutting angle ensure quick and smooth cleaning result. Thanks to different mounting solutions, the plow can be used with tractors, wheel loaders.

Kuvat

Kuvaus

New Meiren UTS4904 is equipped with patented polyurethane blade holders, that copy the road surface, override an obstacles, reduces noise that might come from the blades, saves road markings. High maneuverability of the UTS4904 allows to make the cleaning more precise and quicker. Thanks to different mounting solutions, the plow can be used with tractors, wheel loaders.

Currently offered model: UTS4904



Main advantages of the new U- snow plow UTS4904:

  • Less noise – The patented polyurethane material of the blade holders reduces the transfer of vibration to the moldboard, and the noise generated is significantly lower.
  • Saving the road surface markings –The elastic blade holder protects the road surface markings.
  • Lower fuel consumption –The aggressive cutting angle of the blades, assists in saving fuel and at the same time ensures a cleaner road surface after just one ploughing.
  • Less salt – Maximum copying of the road surface and additional blade system, ensure a clean road surface that reduces the need for using salt.
  • Standard-length blades – The UTS snow plow uses STANDARD hole spacing, that allows to use standard length blades 610 mm.
  • Varusteet

    • U- snow plow (midsection and two side wings)
    • Steel moldboards, shape cylindrical
    • Patent. Polyurethane blade holders (coping road surface, obstacle overrun, noise reduction)
    • Blade holder length 305 mm (optimal for 610 mm and 915 mm blades)
    • Blade cutting angle +15° from vertical (aggressive)
    • 2 pcs. Pivot cylinders for mid-section
    • 2 pcs. Pivot cylinders for side wings
    • Overload valve with hyd. battery for mid-section
    • Hydraulic hoses and quick connection “1/2“ (male)
    • Midsection turning angle left / right (36° / 36°)
    • Side wings total moving angle 180° (back to front)
    • Snow plow frame with mechanical floating (f-frame, for tractor or loader)
    • “Bolt on” mount according to the vehicle mounting
    • Meiren standard safety markings
    • Wear-resistant polyurethane paint (Meiren yellow)
  • Lisävarusteet

    • Set of impact relief protection for side wings (2 safety valves + hydraulic battery)
    • Electric hydr. distributor synchronized movement (with safety valve and hydr. batterie)
    • Switch for controlling el.valve (wired or wireless)
    • LED marker lights (with 7-pin plug)
    • Skid shoe holders with adjustment mechanism
    • Skid shoes (steel or Vautid)
    • Snow overflow rubber in front of plow wings
    • Corner blades exchangeable (with impact relief Through polyurethane blade holders)
    • Optional blades (metal, kombi, polyurethane rubber)
    • Requested safety markings (stickers /lights)
    • Additional mounts (Bolt-on) for tractors, loaders
    • Hydraulic connectors TEMA
